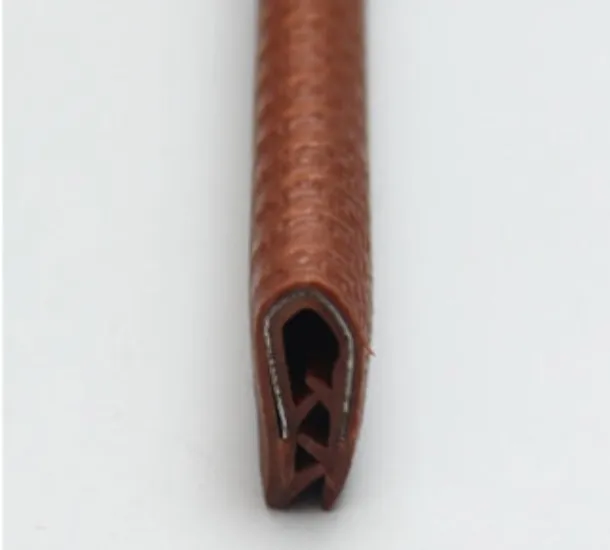

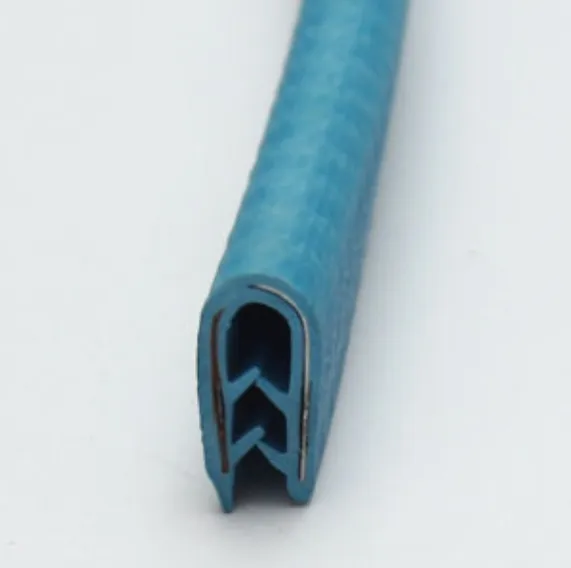

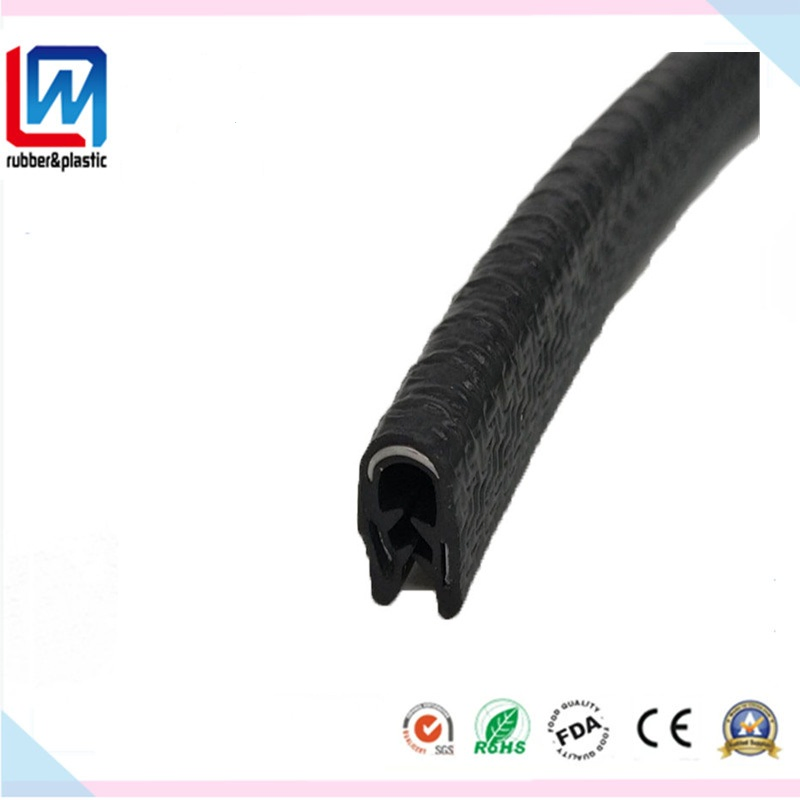

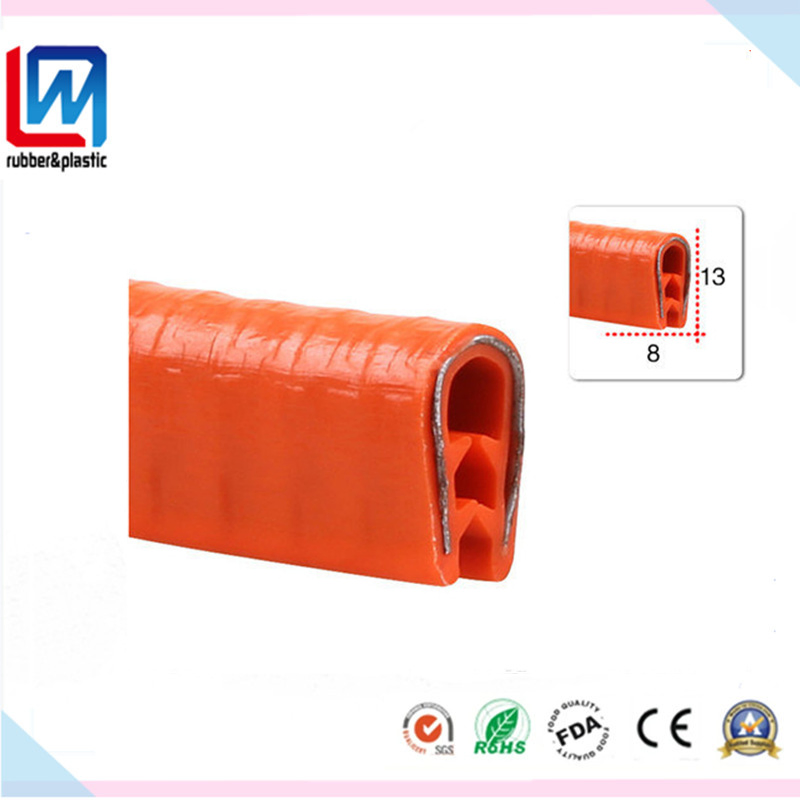

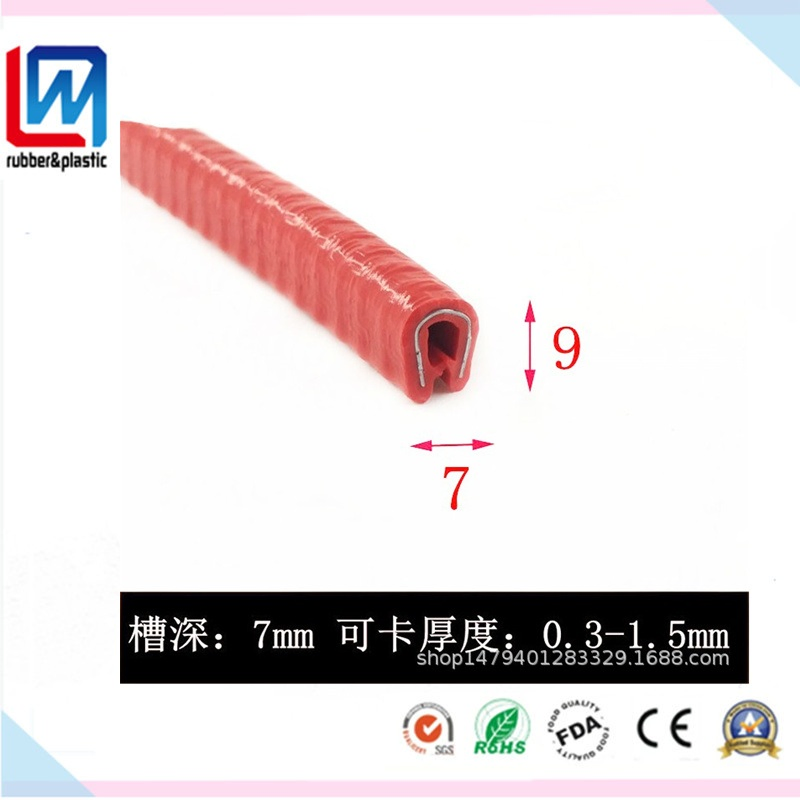

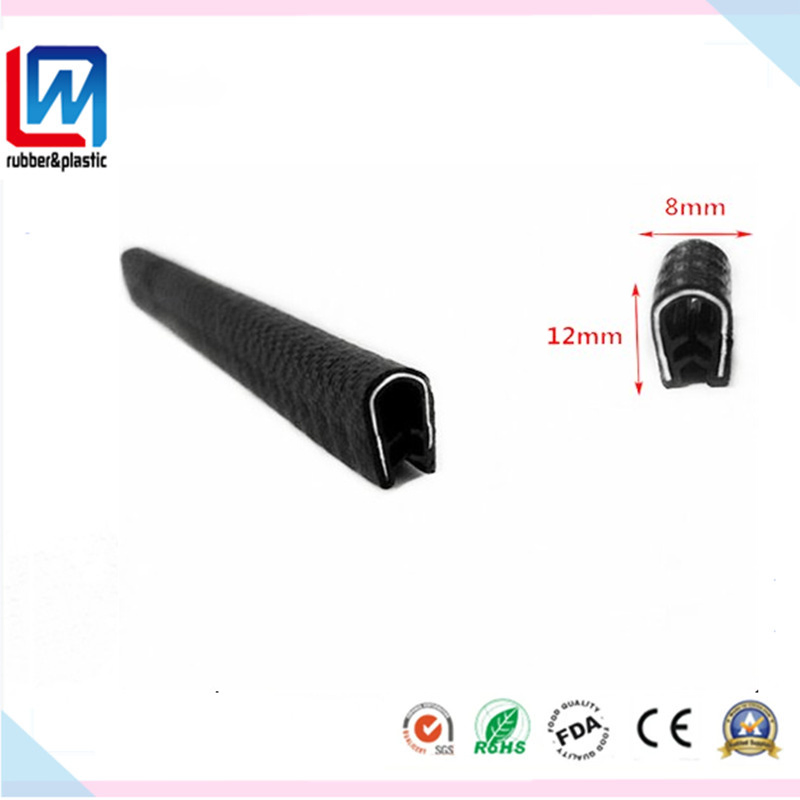

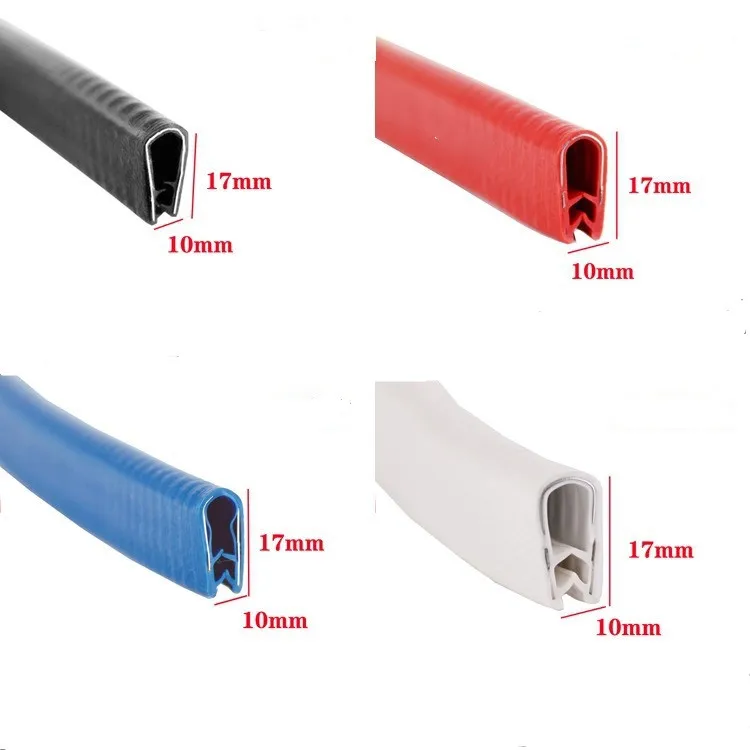

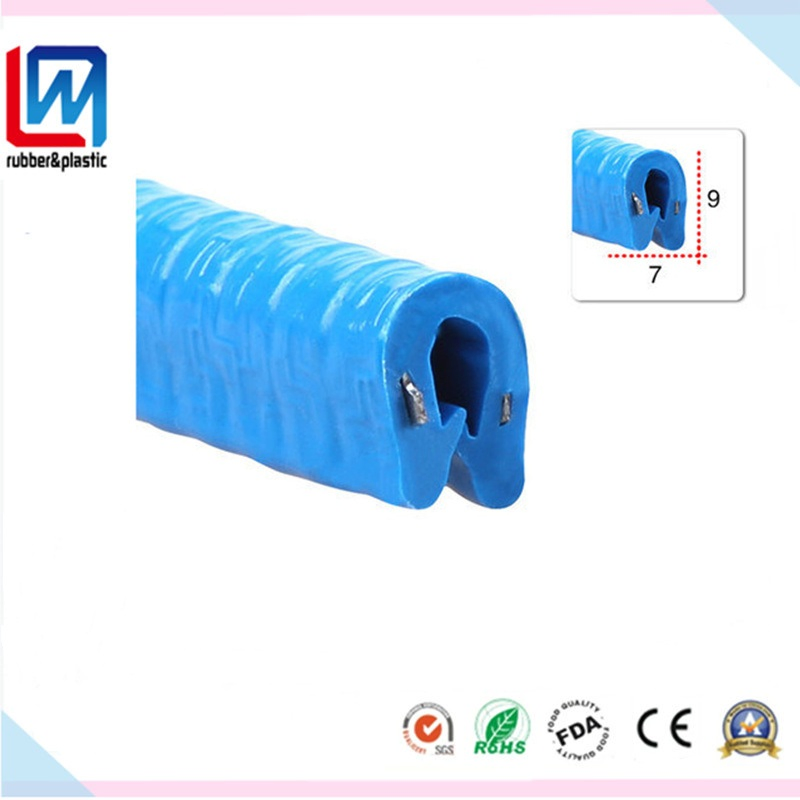

PVC Edge Trim Seal can be designed for decorative trimming or protecting sharp edges. It is installed on sharp edges for safety recognition and general improvement of appearance. Also known as pinch weld seal, trim seal, rubber seal, hatch seal, lid weatherstrip, and edge protection.
| Item Name | PVC/Rubber edge trim seal |
|---|---|
| Material | EPDM, Silicone, NBR, FKM PVC, etc |
| Metal Part | Aluminum, steel, etc |
| Hardness | 30~90 ShA |
| Color | Black, yellow, blue, etc |
| Feature | Anti-collision, pack edge, dustproof |
| Application | Machinery, Automotive, truck, etc |

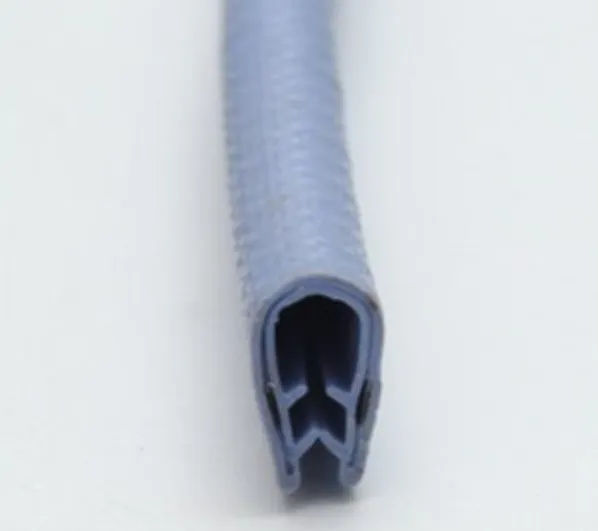

| Shape | U-Shape |

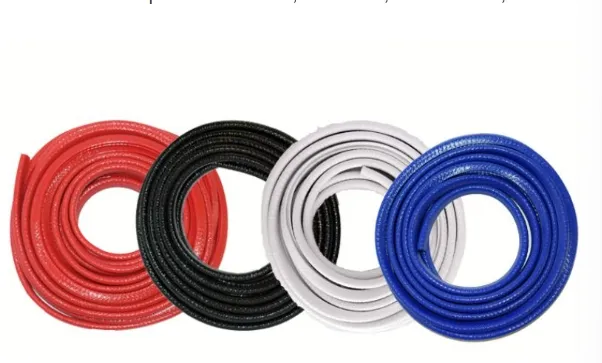

Structure Types:
Functional Categories:
1. Decorative Trim; 2. Customized Trim (Fire Retardant available); 3. Vinyl Edge Trim (Prevents leaks/vibration); 4. Chrome Edge Trim (Adhesive backed).
| Property | EPDM | NR | Silicone | PVC |
|---|---|---|---|---|
| Hardness (Sha) | 30~85 | 30~90 | 20~85 | 50~95 |
| Tensile (Mpa) | ≥8.5 | > 20 | 3~8 | 10~50 |
| Elongation (%) | 200~550 | 1000% | 200~800 | 200~600 |
| Temp Range | -40~+120°C | -50~70°C | -55~+350°C | -29~65°C |
