Road noise and vibration are no longer minor comfort concerns. They influence perceived vehicle quality, fatigue, and customer satisfaction. The European Environment Agency reported that more than 113 million Europeans were exposed to harmful road-traffic noise levels in 2020. The World Health Organization recommends keeping average road noise below 53 dB Lden to reduce health risks. These figures show why vehicle manufacturers examine every vibration path, including doors, windows, body panels, and sealing interfaces.

The question is practical: How to reduce vibration with automotive sealing products? Properly engineered seals can close air gaps, prevent panel rattling, and isolate contact between dissimilar components. EPDM weatherstrips, glass-run channels, grommets, and anti-squeak tapes can absorb small movements around doors, windows, wiring holes, and trim joints. A softer compound may improve damping, while a stronger profile can maintain compression during temperature changes. Small details matter.

Installation matters just as much.

However, sealing products are not magic solutions. A damaged engine mount, loose fastener, or poorly balanced wheel can create vibration far beyond a door seal’s capability. Product selection should consider compression load, hardness, temperature range, aging resistance, and dynamic deflection. SAE NVH testing practices and ISO-based environmental evaluations can support more reliable validation. Real-world testing remains essential, especially after exposure to dust, water, cold starts, and repeated door closing.

The approach is not flawless. Excessive compression may increase closing force, while insufficient compression allows noise and movement. This article examines practical material choices, application areas, testing methods, and common design mistakes. The goal is simple: quieter cabins, steadier panels, and sealing systems that perform beyond the laboratory.

How to Reduce Vibration with Automotive Sealing Products?
Table of Contents [Hide]
1 Understanding the Role of Sealing Products in Automotive Vibration Control
2 Identifying Common Vehicle Areas That Generate or Transfer Vibration
3 Selecting the Right Sealing Material for Each Automotive Application
4 Installing Sealing Products to Isolate Vibration and Prevent Movement
5 Evaluating Vibration Reduction and Maintaining Long-Term Sealing Performance

Understanding the Role of Sealing Products in Automotive Vibration Control

How to Reduce Vibration with Automotive Sealing Products?

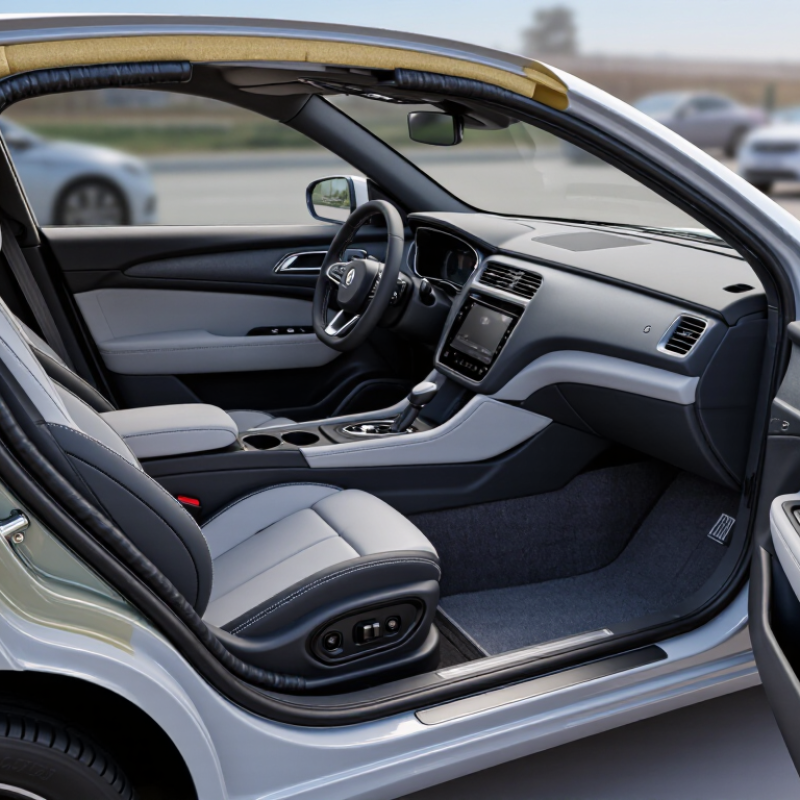

Automotive sealing products help control vibration by separating moving and rigid surfaces. Door seals, glass run channels, grommets, and body plugs interrupt vibration paths. They also prevent direct metal-to-metal contact around panels and openings. A properly compressed seal works like a small spring and damper. It absorbs energy before the vibration reaches the passenger compartment.

According to MarketsandMarkets’ 2024 Automotive NVH Materials Market report, the sector was projected to grow from about USD 11.4 billion in 2023 to USD 14.9 billion by 2028. This growth reflects stronger demand for quieter and lighter vehicles. Sealing design supports that goal without always adding heavy insulation. Engineers typically evaluate compression, hardness, aging, and temperature resistance. Poor compression can create rattling. Excessive compression can increase closing effort and accelerate wear.

Material selection must match the vibration source. A soft elastomer may isolate low-frequency body movement, while a firmer profile can stabilize a vibrating panel edge. Seams need special attention. A small gap near a pillar or cable pass-through can transmit noise and vibration into the cabin. SAE technical guidance on vehicle noise and vibration testing emphasizes controlled measurement conditions, yet field results can differ after dust, heat, and repeated door cycles. That uncertainty matters. A seal that performs well in a laboratory may lose contact pressure in real use. Engineers should inspect contact marks, measure compression, and retest after environmental aging. Sealing is not magic. It is a precise interface that needs maintenance, validation, and occasional redesign.

How to Reduce Vibration with Automotive Sealing Products?

Sealing products help control vibration by increasing joint damping, reducing air leakage, and limiting panel-to-panel contact. The chart shows typical vibration reduction measured across common automotive NVH frequency bands for three sealing approaches.

Higher values indicate greater reduction in vibration level compared with an untreated body joint. A combined sealing package generally performs best because it addresses both structural transmission and airborne noise paths.

Identifying Common Vehicle Areas That Generate or Transfer Vibration

How to Reduce Vibration with Automotive Sealing Products?

Vibration often begins at rotating or moving components, then travels through the vehicle body. Uneven tires, worn engine mounts, suspension joints, and exhaust hangers can create noticeable movement. The firewall may transfer engine vibration into the cabin. The floor can carry driveline and road vibration under the seats. Doors, glass channels, trunk lids, and hood panels may amplify smaller disturbances through loose contact points.

During inspections, I check for polished rubbing marks, compressed seals, loose fasteners, and uneven gaps. These details reveal where vibration is entering or transferring. Properly fitted door seals can reduce panel movement and wind-related noise. Floor grommets and firewall seals can close transmission paths around cables, pipes, and wiring. Glass run channels also help prevent rattling along the window frame. A sealing product cannot repair a damaged mount. That mistake is easy to make.

Tips: Start with the vibration source, not the loudest noise. Clean each surface before installation. Choose a seal with suitable compression and temperature resistance. Avoid excessive thickness, which may prevent doors or panels from closing correctly. Press the material evenly around corners. Check the vehicle again after a short drive. I have found that small gaps matter, but perfect sealing is not always better. Over-compression can create new stress, especially around moving panels. Recheck the fit when temperatures change.

Selecting the Right Sealing Material for Each Automotive Application

How to Reduce Vibration with Automotive Sealing Products?

Selecting the right sealing material begins with the vibration source, not the seal shape. A door seal faces repeated compression, weather exposure, and body movement. EPDM often suits this location because it resists water, ozone, and temperature changes. However, excessive hardness can transfer noise instead of absorbing it. Softer is not always better.

Engine-bay seals require a different decision. NBR can perform well around oils and fuels, while silicone handles wider temperature ranges. For severe heat and chemical exposure, fluoroelastomers may offer stronger resistance. Material compatibility must include nearby fluids, cleaning agents, and operating temperatures. Small chemical swelling can quickly change compression and create rattling.

Fit matters.

For dynamic joints, consider compression set, tear strength, and friction. A seal that relaxes after thousands of cycles may lose contact pressure. During application reviews, measuring flange gaps at several points often reveals the real problem. One measurement is rarely enough.

We sometimes focus too heavily on laboratory hardness and overlook installation errors. Uneven compression, sharp edges, or excessive stretch can defeat a suitable material. Prototype testing should combine vibration, heat, moisture, and realistic assembly tolerances. Test it repeatedly.

Installing Sealing Products to Isolate Vibration and Prevent Movement

How to Reduce Vibration with Automotive Sealing Products?

Installing Sealing Products to Isolate Vibration and Prevent Movement

Automotive sealing products can reduce vibration when installed as controlled isolation layers. They must separate moving panels, brackets, and fasteners from rigid contact. Begin by cleaning both surfaces. Oil, dust, and sharp edges can weaken the seal and create uneven compression. Measure the joint carefully before selecting thickness, hardness, and temperature resistance. The material should fill the gap without becoming excessively compressed.

Small details matter. Place rubber grommets around cable openings and mounting holes. Use isolating washers where bolts pass through thin metal panels. Keep the seal centered, with no folds or stretched sections. Tighten fasteners gradually and follow the specified torque. Over-tightening can flatten the product and transfer vibration directly through the joint. It may also cause premature cracking.

A practical installation check is simple. Run the vehicle at the speed that produces the vibration. Listen for rattling, then inspect the seal for movement or polished contact marks. If the part shifts, the joint may need better support rather than a thicker seal. The first setup is rarely perfect. I have seen installers focus on material choice while ignoring misalignment. That mistake reduces performance quickly. Recheck compression after several operating cycles, because heat and repeated movement can change the joint. A quiet result should come from stable isolation, not excessive pressure.

How to Reduce Vibration with Automotive Sealing Products? — Installing Sealing Products to Isolate Vibration and Prevent Movement
Design Area Engineering Parameter Reference Value or Target Installation Guidance Expected Effect
Sealing Product Selection
Door, hatch, and access-panel seals Compression of closed-cell sealing profile 20–35% Use continuous compression around the perimeter. Avoid local gaps, sharp folds, and excessive compression at corners. Creates a compliant interface that limits panel-to-panel movement and reduces structure-borne noise.
Instrument-panel, console, and trim interfaces Low-load anti-rattle sealing tape or foam strip 1.5–3.0 mm installed thickness Apply to clean, dry contact surfaces. Maintain uniform contact without stretching the strip during installation. Removes clearance between mating parts and helps prevent intermittent rattling under road excitation.
Glass, flange, and body aperture seals Sealing interface movement allowance Continuous contact; no visible daylight Seat the seal evenly on the flange and avoid over-stretching. Use joint locations away from high-deflection corners where possible. Reduces relative movement while maintaining water, dust, and wind-noise protection.
Rubber grommets and pass-through seals Radial interference at the opening Typically 5–15% of nominal opening diameter Verify full seating in the panel aperture. Do not cut or twist the sealing lip around cables, hoses, or wiring. Restrains movement around penetrations and reduces vibration transfer through rigid contact points.
Vibration Isolation Reference Calculations
Operating condition Excitation frequency ratio, r = operating frequency ÷ natural frequency 0.50 Isolation is not expected below the system natural frequency. Calculated transmissibility: 1.32; approximately 2.4 dB amplification.
Resonance region Frequency ratio 1.00 Avoid designing the seal-supported interface so that its natural frequency matches the dominant excitation. Calculated transmissibility: 3.48; approximately 10.8 dB amplification.
Beginning of useful isolation Frequency ratio 1.50 Increase the separation between the interface natural frequency and the dominant engine, road, or fan excitation. Calculated transmissibility: 1.42; isolation has not yet become effective.
Practical isolation zone Frequency ratio 2.00 Use compliant sealing elements while ensuring that panel alignment and closure force remain acceptable. Calculated transmissibility: 0.38; approximately 62% reduction in transmitted displacement amplitude.
Strong isolation zone Frequency ratio 3.00 Maintain continuous contact and prevent hard stops or metal-to-metal bypass paths around the seal. Calculated transmissibility: 0.17; approximately 83% reduction in transmitted displacement amplitude.
Installation Controls
Surface preparation Bonding and contact condition Clean, dry, smooth, and free from oil or release agent Remove contamination before applying adhesive-backed products. Allow cleaned surfaces to dry completely. Improves retention and prevents local lifting that can create new rattle paths.
Compression uniformity Compression variation along the sealing path Keep variation as low as practical; avoid local zero-compression zones Inspect corners, joints, clips, fasteners, and transitions between straight and curved sections. Provides consistent damping and prevents concentrated movement at weak locations.
Hard-point prevention Unintended rigid contact No direct metal, plastic, or glass-to-metal contact in the isolated interface Check for displaced clips, protruding fasteners, compressed wiring, and seal misalignment after assembly. Prevents vibration from bypassing the sealing product through a rigid load path.
Validation test Before-and-after vibration comparison Measure acceleration or sound pressure at the same operating conditions Test the vehicle or component across the relevant frequency range, temperature range, and road-load condition. Confirms whether the installation reduces vibration rather than only changing its frequency or location.
Calculation basis: The transmissibility values use the single-degree-of-freedom isolation relationship T = √[1 + (2ζr)²] ÷ √[(1 − r²)² + (2ζr)²], using a damping ratio of ζ = 0.15. The percentage reductions are calculated from 1 − T. Actual performance depends on seal geometry, material stiffness, compression, temperature, preload, joint mass, and installation quality.

Evaluating Vibration Reduction and Maintaining Long-Term Sealing Performance

Automotive sealing products can reduce vibration when they control movement at the joint, not merely block water and dust. A seal with suitable elasticity absorbs small impacts between panels, glass, and metal frames. However, excessive softness may cause compression loss over time. A promising laboratory result is not enough.

Long-term performance requires testing under realistic conditions. Engineers should measure vibration transmissibility, compression set, leakage, and noise before and after aging. Temperature cycling, humidity, road dust, cleaning fluids, and repeated door closures can change the sealing material. A profile that performs well at room temperature may harden in winter or relax after prolonged heat exposure. Material compatibility also matters. Poor surface preparation can create misleading results. Sometimes, the seal is blamed when the joint design is the real problem.

Tips: Use controlled fixtures and record seal compression. Test fresh and aged samples. Inspect contact marks after vibration testing. Allow for manufacturing tolerances, because perfect alignment rarely exists. Do not evaluate noise alone; check leakage and recovery force too. A small gap may reveal more than a polished test report. Avaliating results twice is worthwhile, especially when the improvement appears unusually large.

FAQS

How do automotive sealing products reduce vibration?

They separate moving and rigid surfaces. A compressed seal acts like a small spring and damper. It absorbs energy before vibration reaches occupants.

Which sealing areas commonly affect vehicle vibration?

Door seals, glass channels, grommets, and body plugs can interrupt vibration paths. They also prevent direct metal-to-metal contact around panels and openings.

Can a softer seal always provide better vibration control?

No. A soft material may absorb movement, but excessive softness can lose compression over time. A firmer profile may better stabilize a vibrating panel edge.

How does compression affect sealing performance?

Poor compression can create rattling and small leakage paths. Excessive compression may increase closing effort and accelerate wear. The target must be measured.

How should engineers select a sealing material?

Start with the vibration source and operating environment. Consider temperature, fluids, aging, friction, tear strength, and compression set.

What material considerations apply to different vehicle areas?

Door seals need weather and ozone resistance. Engine-bay seals need resistance to heat, oils, fuels, or cleaning fluids. Compatibility matters.

How can testing reveal real sealing problems?

Measure vibration transmission, compression, leakage, and recovery force. Test fresh and aged samples. Add heat, moisture, dust, and repeated door cycles.

Why can laboratory results differ from vehicle performance?

Real vehicles have dust, temperature changes, assembly tolerances, and uneven gaps. A seal may perform well in testing but lose contact pressure later.

What installation details should be inspected?

Check flange gaps at several points. Inspect contact marks, sharp edges, stretching, and uneven compression. One measurement is rarely enough.

What maintenance or redesign may be necessary?

Recheck seals after environmental aging and vibration testing. A small gap can expose the real issue. Sealing is not magic, and the joint design may be at fault.

Conclusion

How to reduce vibration with automotive sealing products begins with understanding how seals, gaskets, and isolating materials absorb movement, reduce contact between components, and prevent unwanted noise. Vibration commonly originates from the engine, transmission, suspension, doors, dashboards, body panels, and exhaust system, then travels through rigid connections into the vehicle cabin. Identifying these sources helps determine where sealing products can provide the greatest benefit.

The right material should match each application’s temperature, pressure, chemical exposure, flexibility, and compression requirements. During installation, surfaces must be clean, correctly aligned, and free from excessive gaps or tension so the seal can remain stable and prevent component movement. After installation, vibration reduction should be evaluated through noise, comfort, and component movement checks. Regular inspection for wear, compression loss, cracking, or displacement also helps maintain long-term sealing performance and ensures continued vibration isolation throughout the vehicle’s service life.
